Playpen Configuration¶

Introduction¶

This section outlines available options for setting up and managing a playpen, configurable on the Django Admin UI. The table below provides descriptions of each configuration setting.

Configuration Name	Type	Description
required_comment	Bool	Determines whether users are required to provide comments for each action in the playpen.
required_upload_approval	Bool	When set to `true`, uploads can only be selected after they have been approved.
require_methodology_selection	Bool	Setting this flag to `true` will require users to select a methodology before saving a study.
require_scenario_selection	Bool	Setting this flag to `true` will require users to select scenarios before saving a study.
hide_scenario_selection	Bool	Setting this flag to `true` will remove the scenarios tab from the build study screen.
disable_scenario_weighting	Bool	Setting this flag to `true` will hide the scenario weighting graphic and weight input. Unlike `hide_scenario_selection`, users can still select scenarios, but they will not be able to specify weights.
disable_model_unit_test	Bool	Setting this to `true` will remove the model run section from the model screen.
run_study_options	JSON	A user-customizable run study options in JSON format.
build_study_options	JSON	A user-customizable build study options in JSON format.
model_meta_options	JSON	A user-customizable model metadata form in JSON format.

Info

Modifying build_study_options, require_scenario_selection, hide_scenario_selection or require_methodology_selection will archive all existing studies in the selected playpen.

Tip

Users can customize their playpen configuration in the Django Admin Page at: <hostname>:8000/playpen-configuration/<playpen-configuration-id> (e.g., http://localhost:8000/playpen-configuration/1).

Options¶

The configurations run_study_options and build_study_options are user-customizable runtime options that can be retrieved by user via the SDK API. For more details, see SDK Run Object section.

The types of configurable runtime options include:

datepicker
dropdown
slider
switch
text-box

Each option is a JSON object with multiple fields. The essential fields in each option include name, label, and type. Below is a breakdown of shared fields and type-specific fields.

Shared Fields¶

The table below provides descriptions of fields that are common across different option types:

Field Name	Type	Required / Optional	Description
name	String	Required	A unique identifier for the option.
label	String	Required	A display label for the option.
type	String	Required	Specifies the component type (`datepicker`, `dropdown`, `slider`, `switch`, `text-box` and `table`).
prompt	String	Optional	A prompt or supplementary label shown in some components.
value	Any	Optional	The default value for the option.
required	Bool	Optional	A flag for an input component. If an entry is required, the user must provide it before submitting the form.
placeholder	String	Optional	A placeholder text shown in the input field of some components when the field is empty.

Type-specific Fields¶

The tables below provide descriptions of fields that are unique to each component type:

datepicker

Field Name	Type	Required / Optional	Description
min	Date String	Optional	Minimum valid date.
max	Date String	Optional	Maximum valid date.

dropdown

Field Name	Type	Required / Optional	Description
options	Object	Required	A list of options to choose from. Definition: options: { key: string; label: string; }[];

slider

Field Name	Type	Required / Optional	Description
min	Number	Required	Minimum valid number.
max	Number	Required	Maximum valid number.
step	Number	Required	Increment/decrement step for the slider.
format	String	Optional	Format string in typescript string interpolation style for slider display. For example, when value = 100, "${value}" returns "100" and "${value}%" returns "100%".

text-box

Field Name	Type	Required / Optional	Description
multiline	Bool	Optional	Flag that determines whether the text box accepts multiple lines.
rows	Number	Optional	Maximum number of rows shown in the text box, if `multiline` is `true`.
format	String	Optional	Format for the text input (`color`, `email`, `month`, `number`, `password`, `search`, `tel`, `text`, `time`, `url`, and `week`).

table (Only for run_study_options)

Field Name	Type	Required / Optional	Description
object	String	Required	Defines which risk object to populate the table with (`upload`, `model`, `config_group`, `methodology`, `study`, `filter`, or `report`).
multi	Bool	Optional	Setting to true allows the user to select multiple items from the list.
typeFilter	String	Optional	Allows you to filter the list of available objects by type. Enter the type code of the type you would like to filter by (e.g., for filters, specifying PORTFOLIO will show only Portfolio Filters.

Examples¶

This section illustrates some examples with detailed descriptions on how users can define each option. It also covers how each type of option appears, how it behaves when interacted with, and what it looks like after a user fills in the information (if applicable).

Datepicker¶

Sample config:

    {
        "name": "as_of_date",
        "type": "datepicker",
        "label": "Select as of Date",
        "prompt": "Choose a date"
    }

Illustration:

Initial View
- The option appears as a simple input field with a prompt (if defined).

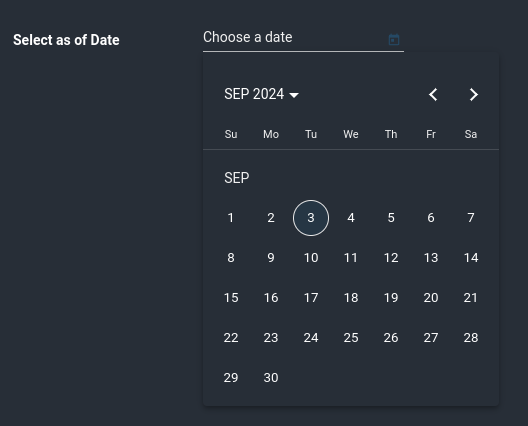

Date Selection
- After clicking the icon, a calendar view pops up, allowing user to select a specific date.
After Selection
- The selected date is displayed in the input field, replacing the placeholder text (if defined).

Sample config:

    {
        "name": "output_currency",
        "type": "dropdown",
        "label": "Select Output Currency",
        "value": "",
        "options": [
            {
                "key": "USD",
                "label": "USD"
            },
            {
                "key": "CAD",
                "label": "CAD"
            },
            {
                "key": "EUR",
                "label": "EUR"
            },
            {
                "key": "JPY",
                "label": "JPY"
            },
            {
                "key": "MYR",
                "label": "MYR"
            },
            {
                "key": "GBP",
                "label": "GBP"
            }
        ]
    }

Illustration:

Initial View:
- The dropdown appears with a placeholder text (if defined).
Options Display:
- Clicking the dropdown displays a list of available options defined.
After Selection:
- The selected option is displayed in the dropdown field, replacing the placeholder (if defined).

Slider¶

Sample config:

    {
        "max": 100,
        "min": 0,
        "name": "percent_to_process",
        "type": "slider",
        "label": "Select Percent to Process",
        "value": 100,
        "format": "${value}%"
    }

Illustration:

The slider allows user to drag in between the min and max values defined displaying the current value in real time as user drags the slider handle.

Switch¶

Sample config:

    {
        "name": "save_results",
        "type": "switch",
        "label": "Save Results",
        "value": false,
        "prompt": "Save"
    }

Illustration:

The option appears as a toggle button. Users can click the button to switch its state.

Text box¶

Sample config:

    {
        "name": "email",
        "type": "text-box",
        "label": "Enter Email information",
        "prompt": "Enter Email information"
    }

Illustration:

Initial View:
- The option is displayed as an input field with label defined.
Text Entering:
- As users type, the entered text is displayed within the text box. If multiline is set to true, the field expands to accommodate more text.

Table¶

Sample config:

    {
        "name": "uploads",
        "type": "table",
        "label": "Data",
        "object": "upload"
    }

Illustration:

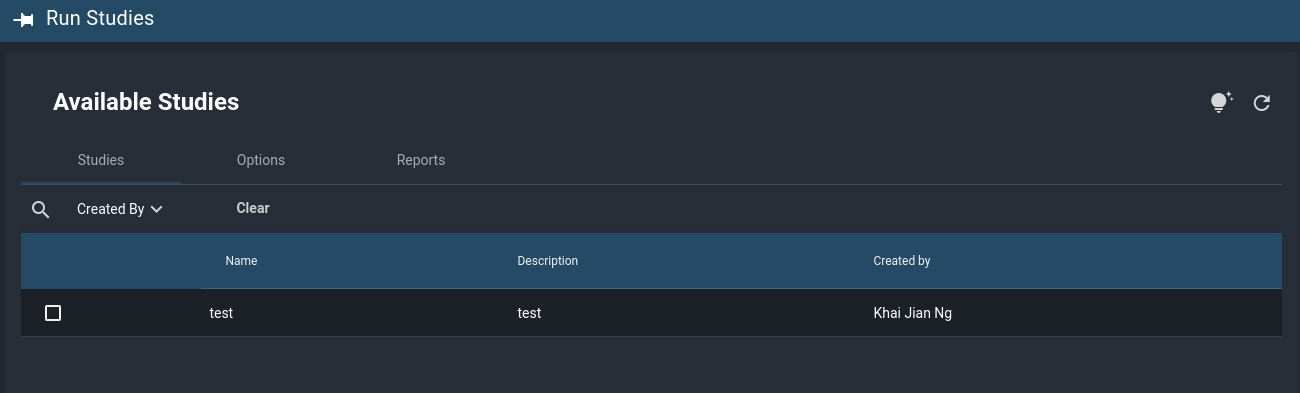

Initial View:
- The image shows the inital state of the Run Studies tab appears without any table options defined.

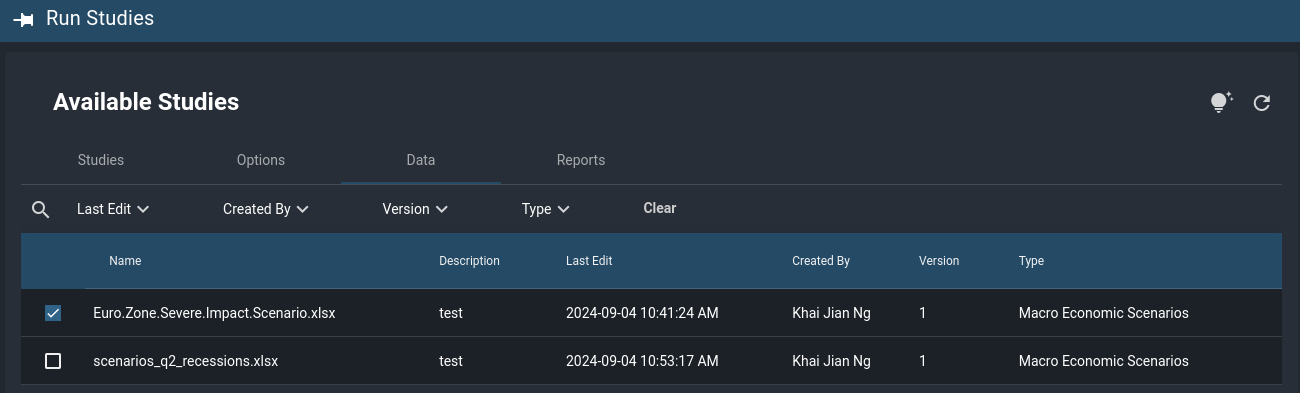

Object Selection:
- After defining an option of type table shown above, an additional tab appears with the label defined. Users can select available upload object of their choice.

!!! tip See Uploads page for documentation on how to upload files.

Multiple Object Selection:
- If multi is defined as true, users can select multiple items from the list.
